Built In Integral Blinds for Bifold Doors
Enhance your bifold doors with built-In integral blinds for bifold doors. Enjoy effortless light control and low maintenance.
Integral Blinds for Bifold Doors
Integral bifold blinds are built in to the glazing cavity of bi-fold doors. In fact they can be fitted within any door or window that has a sealed unit with a cavity of 20mm or more.
Add privacy
Eliminate glare
Dust free – No cleaning – Ever!
Control temperature
Easy manual or automatic operation
Wide range of colours
Yes To Style!
Marry built in, venetian blinds, with the Marlin range of slim frame stylish aluminium windows, bi-fold doors or sliding patio doors.
All our systems feature the world’s number one integral blind system ScreenLine®.
C system – magnetic control
The C system, designed with the rotational, frontal, magnetic control for raising and tilting a blind integrated within a double-glazed unit, utilises the force produced by two coupled, rotational, magnetic devices.
One set of magnets is inserted in the blind head rail within the cavity and the other applied to the external glass surface.
This magnet principle does not compromise the unit seal and guarantees the perfect integrity of the double-glazing unit.
Integral bifold blinds offer a sleek, modern solution for light control and privacy, seamlessly built between the glass for a hassle-free, low-maintenance finish.

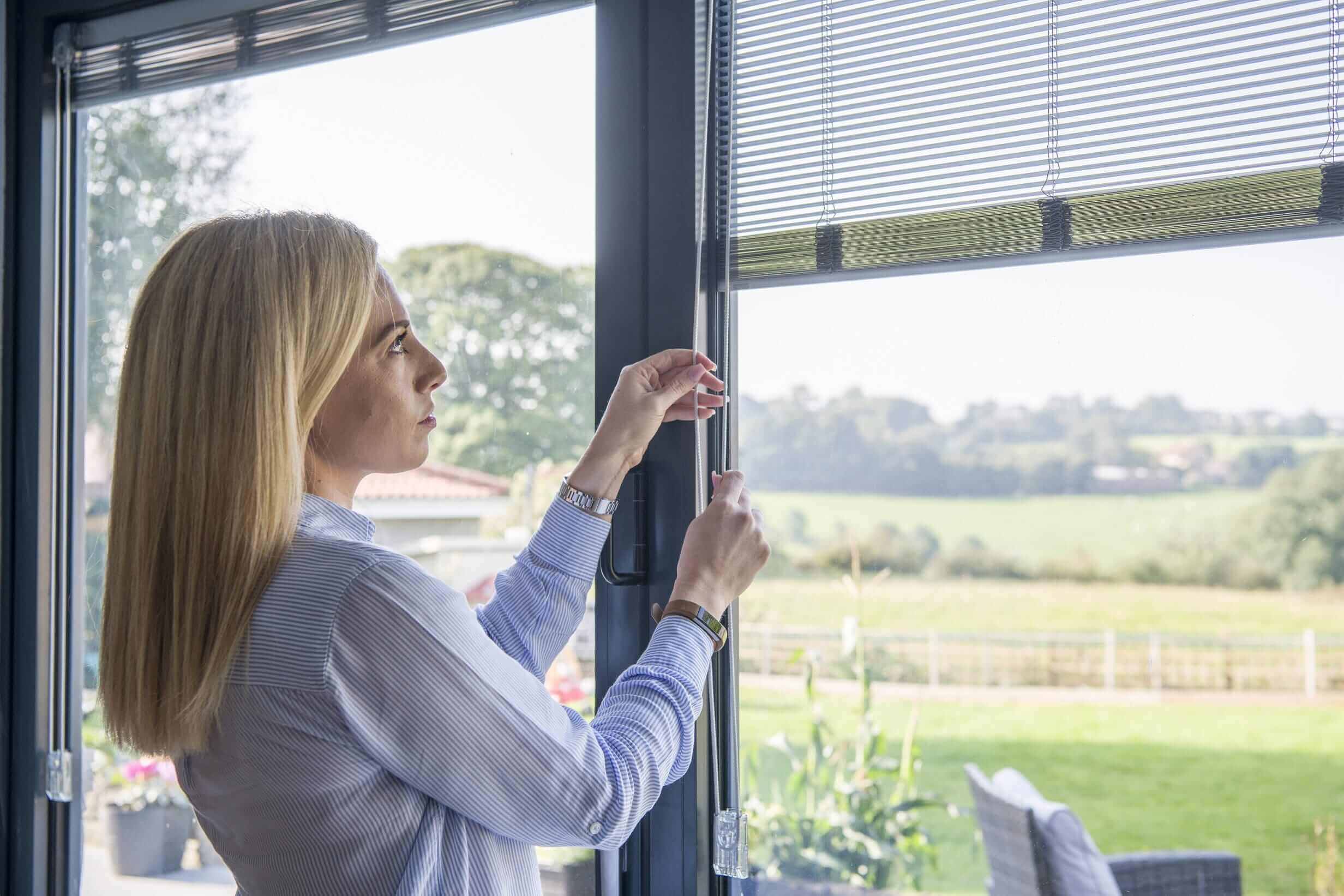

SV system – Cordless slider
The ScreenLine® SL20SV system is a manually operated sliding Venetian blind which features a single, cleverly designed magnetic slider to control the whole operation.
Positioned on a narrow slide guide on the edge of the sealed unit, this allows the blind to be raised, lowered and tilted with ease completely cord free.
S system – Slider
The ScreenLine® SL20S is a manual system comprising a 14mm pleated blind integrated within a double-glazed unit with 20mm cavity.
The blind movement is achieved by a magnetic device positioned centrally on the outer surface of the internal pane sliding across the glass surface.
This external magnet interfaces with a similar internal magnet located in the movable rail and it is so designed to absorb possible glass deflections.
COLOURS AND GLAZING
Our aluminium profiles are polyester powder coated by our systems suppliers using the very latest paint application techniques guaranteed for 25 years.
Fully compliant to the latest June 2022 building regulations our standard double glazing is the exceptional light transmitting, energy saving ClimaGuard® A+ low emissivity (Low-E) glass manufactured by Guardian Glass.
”…really helpful with all my technical queries, which helped make sure my orders were mm perfect and the doors all went in smoothly…
They look great – will do it all again in our next house!”
Nicholas Kitchen
Latest projects
BI FOLD DOORS
Bi-fold Doors Ben Rhydding – Ilkley
HERITAGE DOORS
Mousehole Cottage, Oldstead, North York Moors
HERITAGE DOORS
York – Yes they are aluminium!
Why choose Marlin?
Reasons why you should expect 100% satisfaction.
Quality Control
We believe that our quality standards are unrivalled. Our manufacturing processes and activities are monitored with well defined controls and inspection procedures are performed by trained personnel.
Care
We respect you, your property and your project taking care over each detail from order to delivery to your post installation satisfaction.
Project Focus
Your project is important to us. We manufacture to your made to measure requirements so that we get it exactly right. See example case studies of our project work.
Frequently Asked Questions
If you require any support, please don’t hesitate to review our FAQ’s below or drop us a message on our contact form here
What are built-in integral blinds, and how do they work?
Built-in integral blinds are Venetian blinds sealed within the double-glazed unit of bifold doors or windows. They are operated using magnetic systems that allow you to raise, lower and tilt the blinds without compromising the unit’s seal. We offer several operation systems, including the C system (rotational magnetic control), SV system (cordless slider), and S system (manual slider), all utilising ScreenLine® technology.
What are the benefits of choosing integral blinds over traditional blinds?
Integral blinds offer several advantages:
-
Low Maintenance: Being sealed within the glass unit, they remain dust-free and never require cleaning.
-
Enhanced Privacy and Light Control: They provide adjustable shading and privacy without obstructing views.
-
Thermal Efficiency: They help control temperature and reduce solar gain.
-
Aesthetic Appeal: They offer a sleek, modern look without external cords or fittings.
-
Safety: Cordless operation makes them safer for homes with children and pets.
These features make integral blinds a stylish and practical choice for modern homes.
Can integral blinds be installed in existing bifold doors or windows?
Integral blinds require a sealed glazing unit with a cavity of at least 20mm. They can be fitted within any door or window that meets this specification. However, retrofitting them into existing units may not be feasible. It’s best to consult with us to assess your specific situation and determine the most suitable solution.
